Case Study: Reflection Banquet Hall - A 1,200-Guest Commercial Kitchen Build

A3 Equipment / Project Record

Surrey, British Columbia

Case Study — Banquet Infrastructure

Scaling eco-friendly, high-capacity luxury at Reflection Banquet Hall

A turnkey back-of-house rebuild for a British Columbia venue that serves 800 to 1,200 guests at once — ventilation, hot line, bar, and warewashing, supplied, fabricated, and installed end to end.

Project head Ali Abbas, Chief Executive Officer, A3 Equipment  ·  Installed by A3 Manpower

In this record 01 Challenge 02 Solution 03 Results 04 Contact

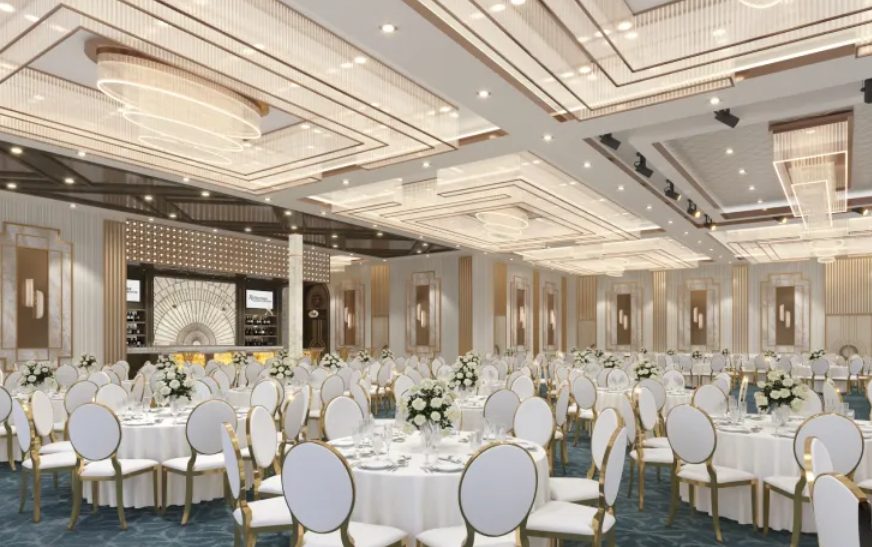

The main ballroom at Reflection Banquet Hall, set for a full-capacity event.
Figure 01 The room every system in this record exists to protect. Reflection Banquet Hall seats 800 to 1,200 guests at a single sitting, and the brief was to hold it quiet, cool and free of kitchen odour while a thousand covers leave the pass at once.
800–1,200

Guests served simultaneously per event

1,200 covers

Brought to serving temperature at once by the Rational banquet finishing system

243 racks / hr

Throughput of the Energy Star certified CMA EST-44 conveyor dishwasher

Delivery model Single source — supply, gas fitting, welding, plumbing, rigging, and installation carried by A3 Equipment and A3 Manpower, with no outside subcontractors on the critical path.

Project Profile

Client
Reflection Banquet Hall
Location
British Columbia, Canada
Operational capacity
800 to 1,200 guests simultaneously per event
Engineering philosophy
Eco-friendly operations, high-velocity extraction, culinary wellness
Turnkey equipment partner
A3 Equipment — Energy Star certified commercial portfolio
Deployment force
A3 Manpower — certified installers, welders, plumbers, rigging installers
Delivery model
Single source: supply, gas fitting, custom welding, specialized plumbing
Scope
Ventilation and climate, hot line and banquet plating, bar operations, warewashing and waste
Project head
Ali Abbas, Chief Executive Officer, A3 Equipment

Section 01 — The Operational Challenge

Mass-scale strain against a luxury room

Reflection Banquet Hall runs grand weddings, corporate galas, and milestone events for 800 to 1,200 guests at a time. At that tier a conventional kitchen line breaks down under load, and the failure shows up on both sides of the wall: in the guest experience, and in back-of-house safety. The venue identified three bottlenecks that needed modernization.

  1. Thermal load and dehydration on the hot line

    A continuous multi-line hot prep array capable of a simultaneous 1,200-plate turnout produces heavy ambient heat, vaporized grease, and smoke. Without high-capacity remediation, the kitchen develops heat pockets that sit over the working stations.

    RiskChef exhaustion, thermal stress, and dehydration during the volume rushes that decide whether a banquet lands on time.

  2. Air balance and odor bleed into the ballroom

    Heavyline cooking demands intense exhaust extraction. If that extraction volume is not balanced against tempered fresh air returns, the building goes into negative pressure.

    RiskKitchen exhaust, smoke, and grease odor pulled backwards into the ballroom, degrading the one thing the room is sold on.

  3. Utility load and the post-service dish backlog

    Moving over 1,000 guests through a multi-course menu creates a rolling wave of thousands of soiled plates, glasses, and silverware, all of it arriving in the same half hour.

    RiskScaling infrastructure to clear that volume normally drives electrical, gas, and water consumption sharply upward, and every event thereafter carries the cost.

Section 02 — The Solution

Turnkey infrastructure engineering across four subsystems

Directed personally by CEO Ali Abbas, A3 Equipment answered with an architectural design response rather than a set of disjointed equipment swaps. A multi-disciplinary A3 Manpower force overhauled the hot lines, plumbing, gas piping, ventilation runs, and custom bar fabrications end to end.

2.1 — Ventilation and climate

CaptiveAire high-capacity extraction and makeup air

A3 Equipment engineered and installed a custom commercial exhaust hood layout paired directly with a high-capacity CaptiveAire Makeup Air Unit and Dedicated Outdoor Air System. The system replaces thousands of cubic feet of expelled hot air per minute with clean, tempered outside air introduced directly over the active workspaces.

That equilibrium creates positive pressure barriers that seal kitchen aromas away from guests, while continuously shielding the culinary team from dehydration and thermal exhaustion.

  • Installed
  • Custom exhaust hood layout
  • CaptiveAire makeup air unit
  • Dedicated outdoor air system
  • Positive pressure barrier

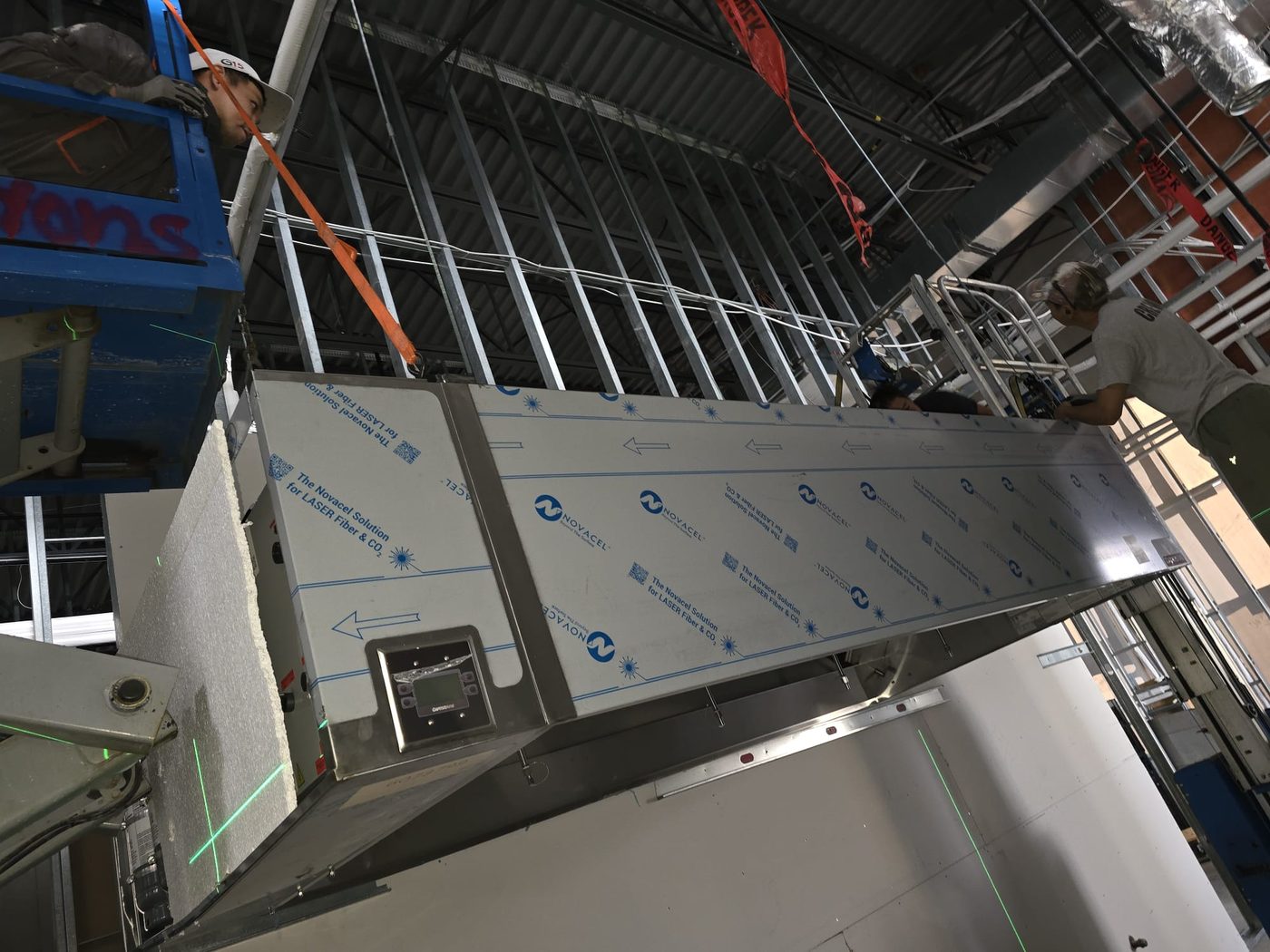

A3 Manpower riggers suspending a custom CaptiveAire extraction hood from the kitchen ceiling.
Figure 02 Riggers setting the ceiling suspension and tracking for the hood layout. The hood is only half the system: it is matched to a makeup air unit sized to return the same volume of tempered air, or the building goes negative and the ballroom gets the smell.

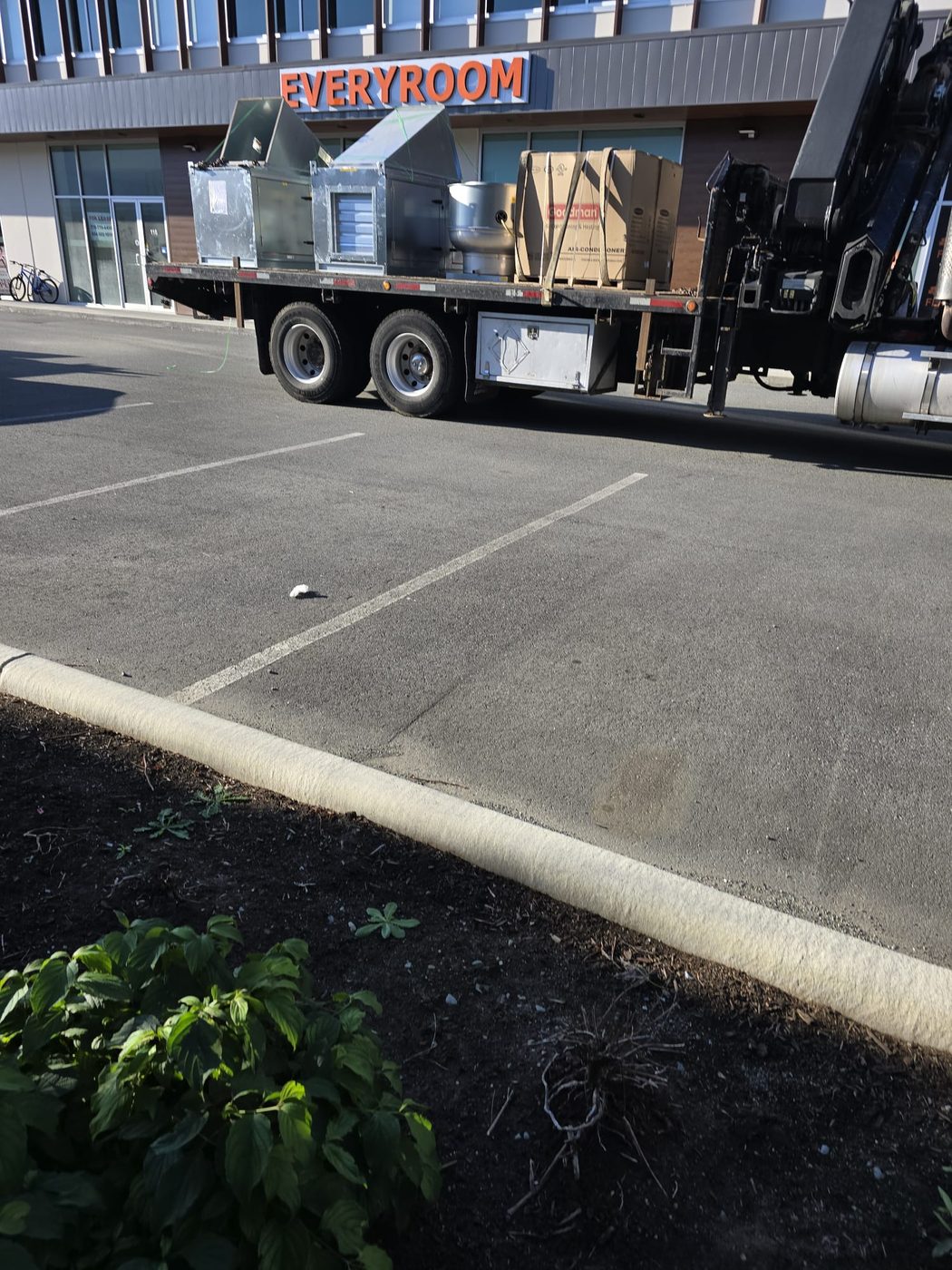

CaptiveAire climate systems and heavy kitchen machinery arriving on an A3 Equipment logistics truck.
Figure 03 The climate package arrives on A3's own logistics fleet. The shipment is not only hoods: the makeup air unit and dedicated outdoor air system that hold the kitchen at positive pressure are supplied and installed under the same contract.

2.2 — Cooking line and banquet plating

Vulcan firepower with Rational banquet finishing

The core hot line was rebuilt on premium heavyline cooking frameworks to balance high-BTU output against thermal precision. A3 gas fitters ran high-volume supply lines to a series of industrial Vulcan ranges and heavy-duty open burners, supporting pan-searing, rapid stockpot reduction, and fast thermal recovery.

To carry a 1,200-person service without quality degradation, those ranges were paired with a dual-unit battery of high-capacity Rational combi ovens running the Rational Banquet Finishing System. Chefs prepare components during calmer morning prep windows, plate meals cold on mobile custom plate racks, and roll them into refrigeration. Minutes before service the racks roll into the combi chambers, and all 1,200 covers come to exact serving temperature at once with moisture preserved.

1,200 coversFinished simultaneously
2 combi ovensRational dual-unit battery
  • Installed
  • Vulcan ranges
  • High-BTU open burners
  • Rational combi ovens
  • Rational banquet finishing system
  • Mobile plate racks

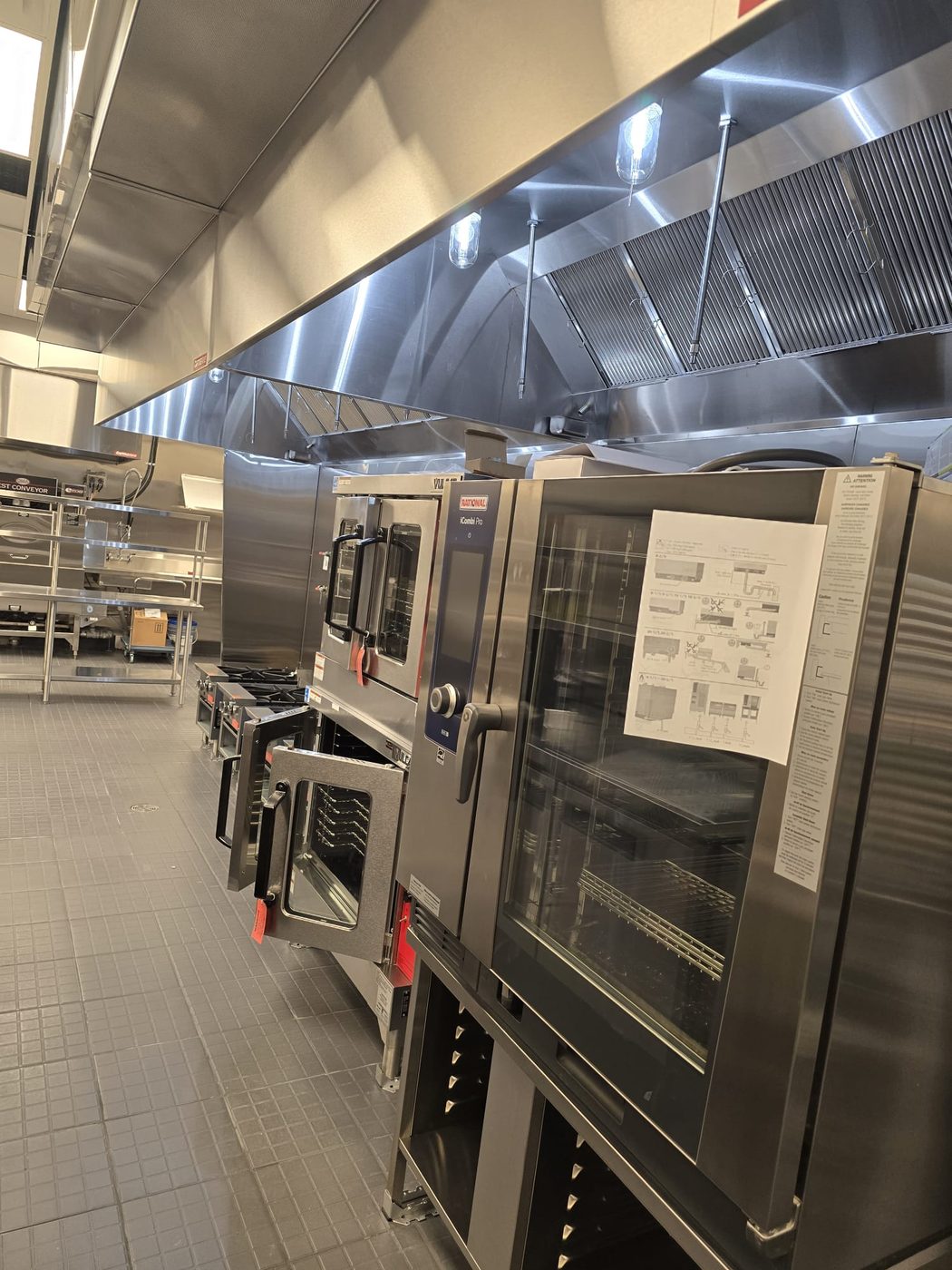

Calibrated Rational combi oven beside the Vulcan heavy-duty hot line.
Figure 04 Rational combi oven calibrated beside the Vulcan hot line and certified by A3 Manpower technical specialists. The combis are set as a dual-unit battery so banquet finishing can run without taking the ranges out of service.

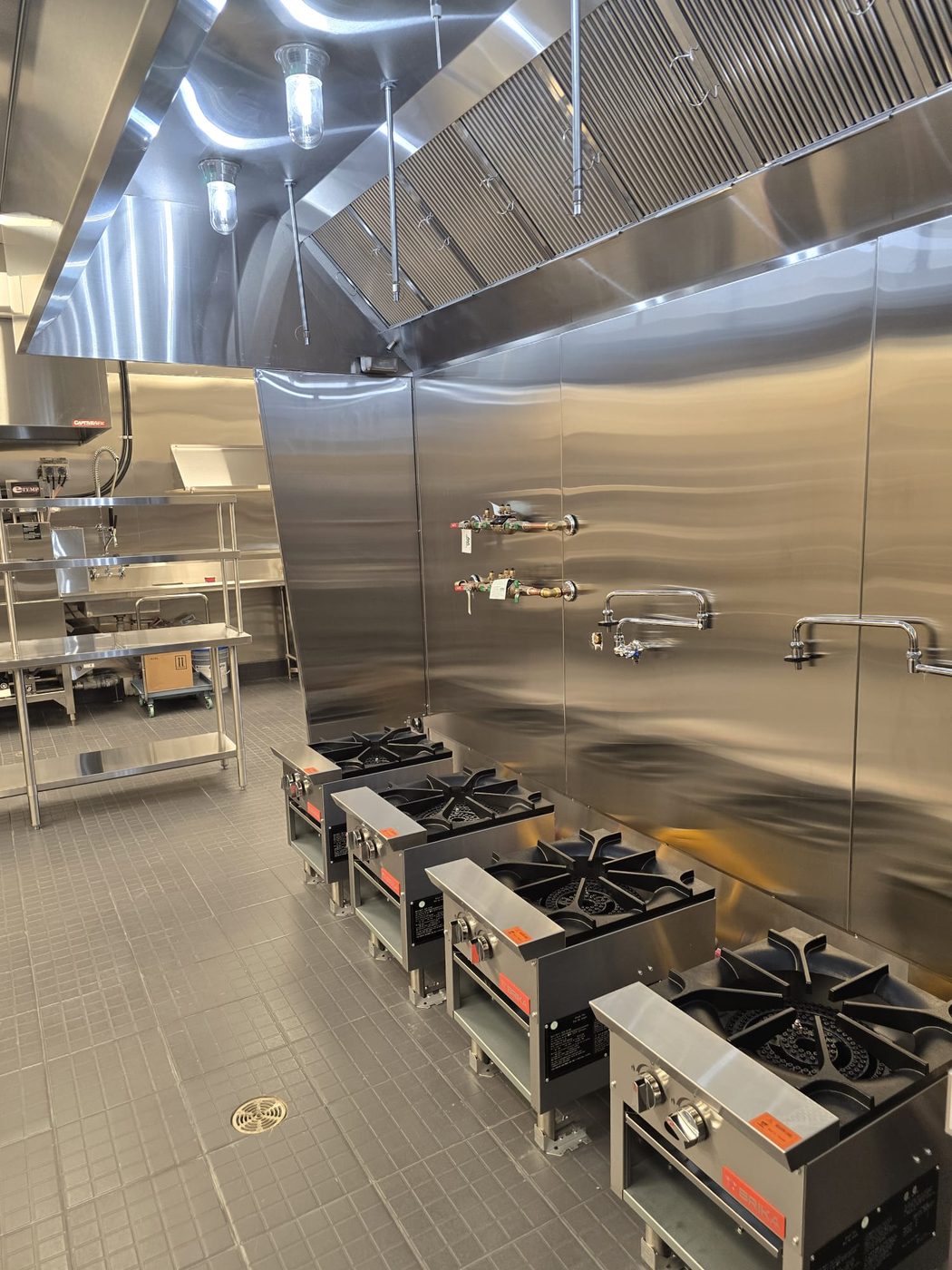

Industrial high-BTU Vulcan stockpot range and specialty range configuration.
Figure 05 High-BTU Vulcan stockpot and specialty range configurations. A3 gas fitters ran dedicated high-volume supply lines to these burners, sized for thermal recovery between batches rather than peak output alone.

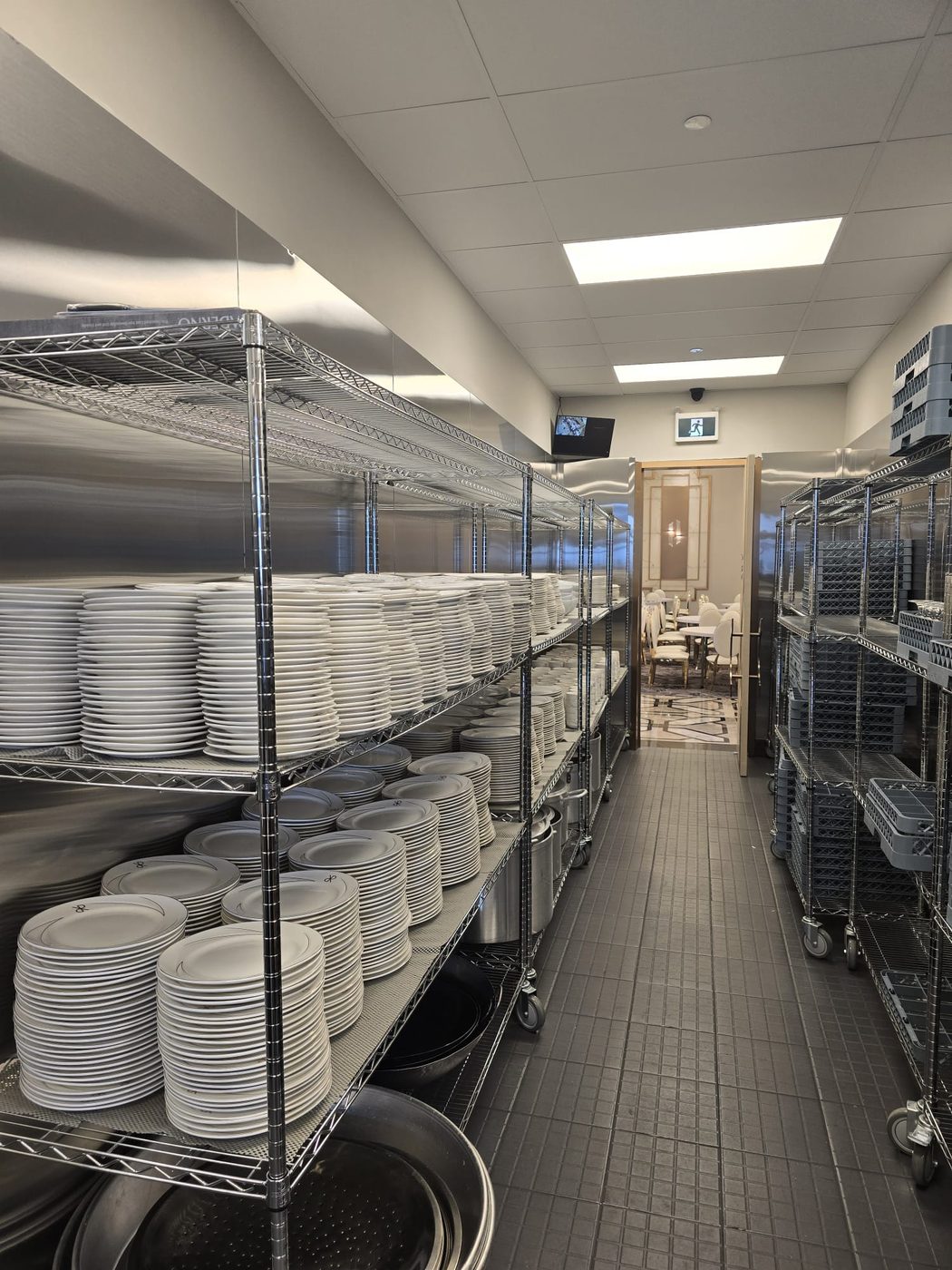

Structural plating racks and mobile transport banks staged for banquet service.
Figure 06 Plate racks staged for service. Covers are plated cold onto these racks and held in refrigeration; the racks then roll straight into the combi chambers, which is the mechanism by which 1,200 plates reach temperature at the same moment. The racks are moved by hand.

2.3 — Bar operations

A cocktail suite built on site

A3 structural welders fabricated the premium A3 cocktail stations on site, integrated alongside high-performance Newair bar coolers and space-saving heavy-duty undercounter units. High-output ITV ice machines run eco-safe, zero-ozone-depletion refrigerants.

Bartenders work with multi-tier storage, localized speed rails, water-conserving integrated glass rinsers, and rapid thermal insulation — cutting cocktail ticket times during peak crowds.

  • Installed
  • A3 fabricated cocktail stations
  • Newair bar coolers
  • Undercounter refrigeration
  • ITV ice machines
  • Integrated glass rinsers

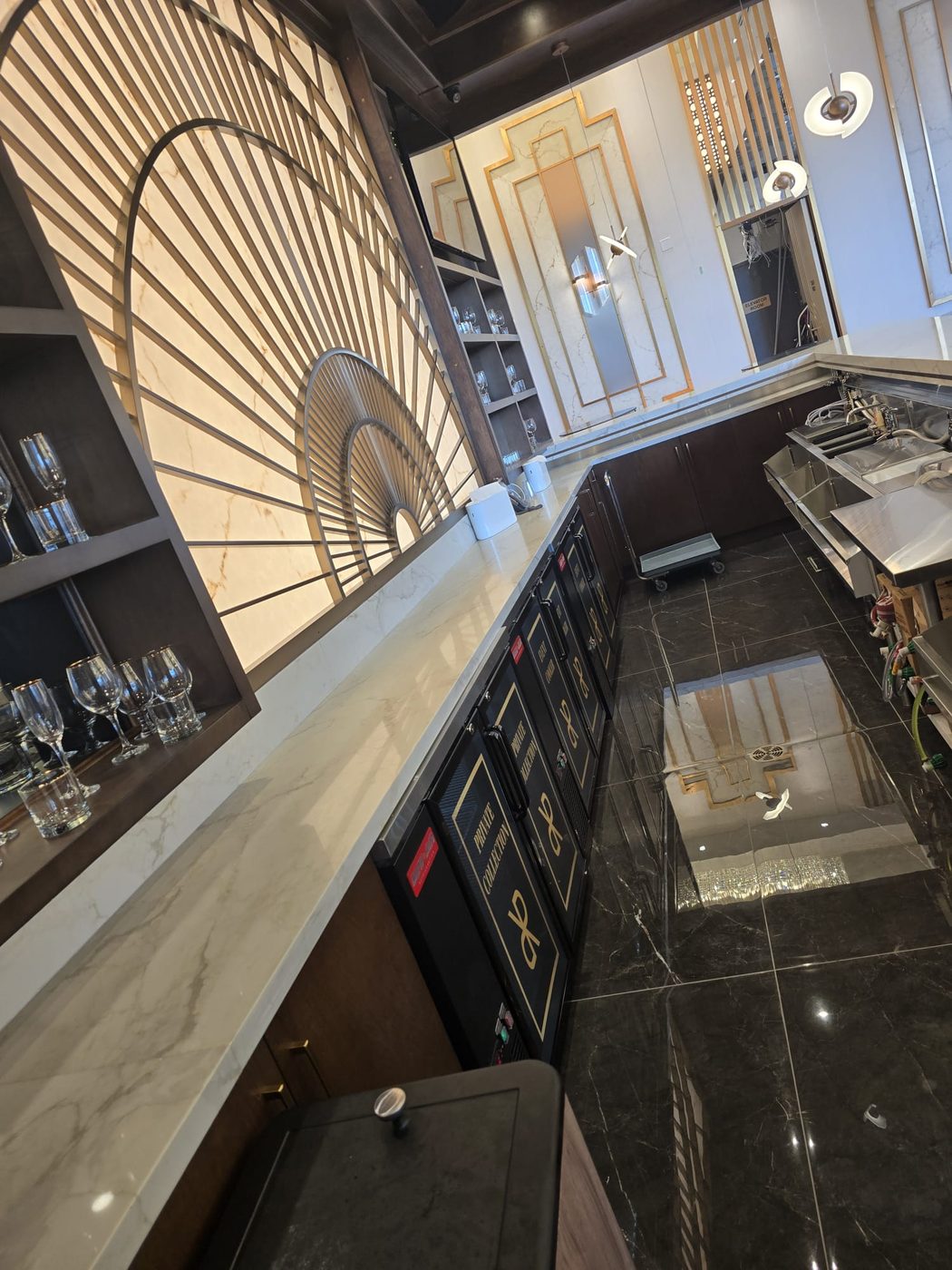

Custom-fabricated A3 cocktail station with integrated Newair refrigeration.
Figure 07 A cocktail station welded on site rather than shipped in sections, with Newair refrigeration built into the run. The ice behind it comes from ITV machines charged with zero-ozone-depletion refrigerant.

2.4 — Warewashing and waste

Low-temperature conveyor washing and in-line pulping

To prevent a post-dinner logjam, A3 plumbers and mechanical specialists deployed the Energy Star certified CMA Dishmachines EST-44 low-temperature conveyor dishwasher. At 243 racks per hour on continuous-feed chemical sanitization, it bypasses the large power-draining heating elements a high-temperature machine depends on, and cuts water and energy use on the warewashing line roughly in half.

At the primary scrapping station, an industrial Hobart commercial garbagerator pulps plate scraps directly into the drainage stream, eliminating trash-room overflow, leaks, and odors across the facility.

243 racks / hrThroughput, CMA EST-44
About halfWater and energy use on the warewash line
  • Installed
  • CMA Dishmachines EST-44
  • Low-temp conveyor
  • Chemical sanitization
  • Hobart garbagerator

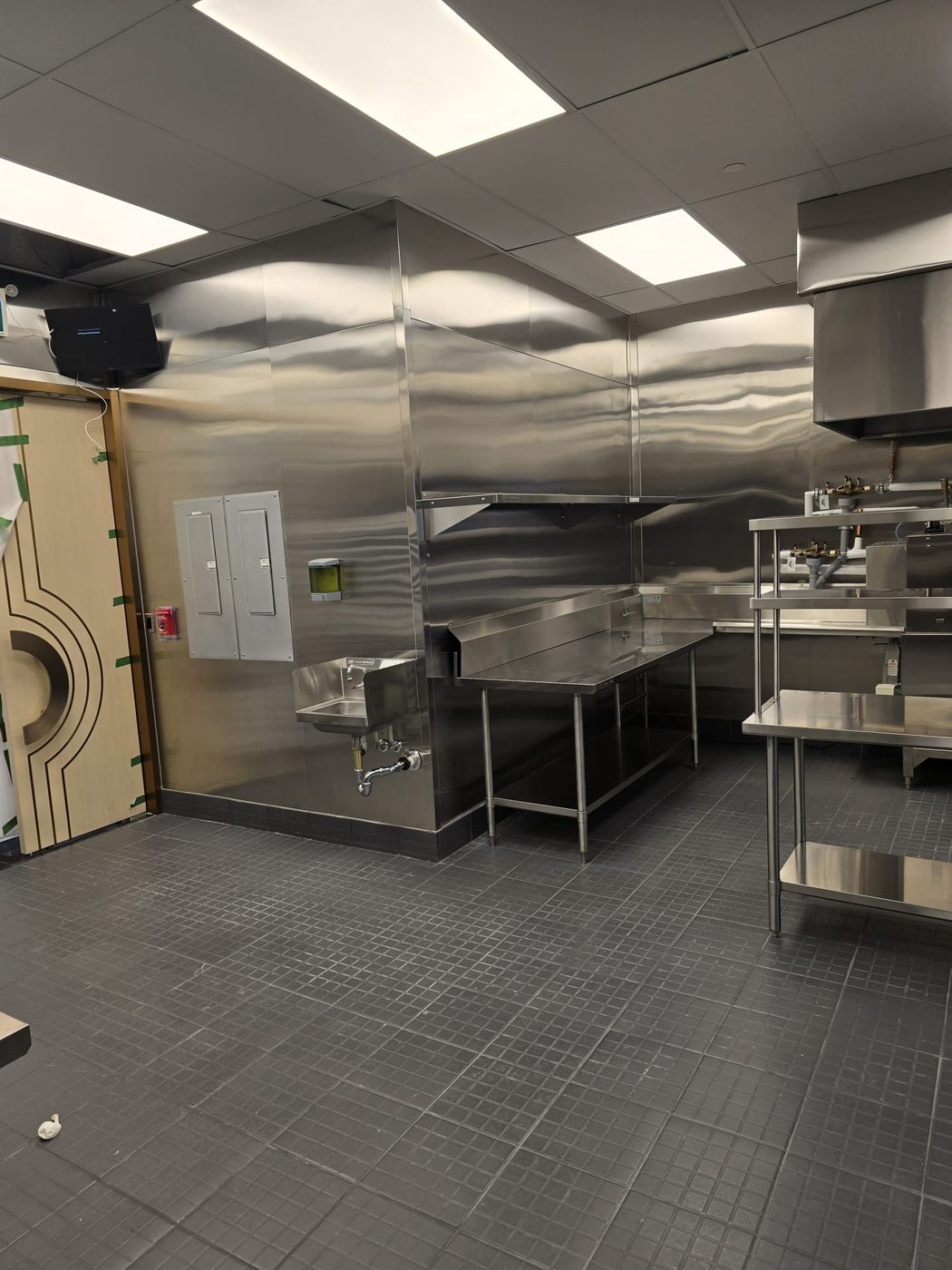

Warewashing reception line with stainless prep tabling and Hobart garbagerator disposal.
Figure 08 The warewashing reception line, with the Hobart garbagerator at the scrapping station. Scraps are pulped into the drainage stream instead of being carried to a trash room, which is what keeps the back corridor clear through a thousand-cover turnaround.

Section 03 — System Results

Sustainable performance, measured at the utility bill

The modernization turned Reflection Banquet Hall into a high-capacity, sustainable hospitality facility. Each outcome below names the intervention that produced it.

Domain

Chef wellness

Intervention

CaptiveAire air balancing, with tempered makeup air introduced directly over the working stations.

Outcome

Ambient temperature on the active mainline came down, and the heat pockets that drove exhaustion and dehydration during volume rushes were removed.

Domain

Utility cost

Intervention

Energy Star certified refrigeration, ice, combi ovens, and low-temperature chemical warewashing specified throughout.

Outcome

Historical water consumption cut, and monthly electrical and natural gas spend reported down by thousands of dollars against the venue's previous baseline.

Domain

Ballroom atmosphere

Intervention

Custom high-velocity exhaust extraction matched to CaptiveAire intake volume, holding the building at positive pressure.

Outcome

Interior pressure stays balanced. Even under peak searing cycles on the Vulcan ranges, kitchen grease and cooking aroma do not bleed into the main ballroom.

Domain

Warewash throughput

Intervention

CMA EST-44 low-temperature conveyor dishwasher with a Hobart garbagerator at the scrapping station.

Outcome

243 racks per hour clears the post-service wave, water and energy use on the line fell by roughly half, and trash-room overflow, leaks, and odors were eliminated.

Domain

Project delivery

Intervention

One source for supply, gas fitting, custom welding, rigging, and specialized plumbing — A3 Equipment with A3 Manpower.

Outcome

No subcontractor hand-offs on the critical path, so ventilation, gas, and warewashing were calibrated against each other, certified, and handed over on schedule.

“The turnkey orchestration by A3 Equipment bridged the gap between high-capacity commercial firepower and eco-friendly hospitality engineering. 1,200 plates are served hotter than ever, kitchen air remains crisp and safe, and operational utility costs have dropped to historic lows.”
Ali Abbas Chief Executive Officer, A3 Equipment
